Strymon BRIG dBucket Delay Guitar Effects Pedal

The Strymon BRIG takes everything guitarists love about vintage bucket brigade delays and reimagines them for today’s players in a compact, modern, and incredibly flexible format. Far more than a “cut-down Brigadier,” the BRIG brings you the warmth, movement, and magic of classic BBD circuits—expanded with true stereo operation, deep MIDI integration, and enhanced creative control.

At its core, BRIG delivers three distinct bucket brigade voices, each inspired by legendary 1970s and 1980s delay chips:

• MN3205 Mode – shorter delay times with characterful grit and warm modulation

• MN3005 Mode – lush, spacious repeats with extended delay range

• Multi-Voiced Cross-Coupled Mode – two interlocked delay machines with golden-ratio timing, producing wide, evolving stereo textures unlike any traditional analog delay

With its unique Filter control, you can dial in the perfect tonal flavor of your repeats—ranging from pristine, hi-fi echoes to the dark, noisy, and atmospheric character of aging vintage units. Set the 3205 for ultra-short times and you’ll unlock rich, BBD-style chorus and modulation effects.

Whether you’re running mono, stereo, or dual setups, BRIG offers a huge stereo field and full control of your sound. Add in tap tempo, 300 MIDI-accessible presets, and glitch-free switching, and you’ve got a professional-grade delay pedal that can live on any pedalboard—from minimalist rigs to full MIDI-controlled setups.

Key Features

• Three BBD voices inspired by iconic delay chips (MN3205, MN3005, and cross-coupled golden ratio delays)

• Filter control for shaping repeats from pristine to dark and noisy

• Stereo operation: mono-to-mono, mono-to-stereo, stereo-to-stereo

• Chorus mode: 3205/min delay setting for lush bucket-brigade chorus sounds

• Tap tempo with no delay-time restrictions from classic chip limitations

• True stereo delay lines for massive, spacious sound

Connectivity & Control

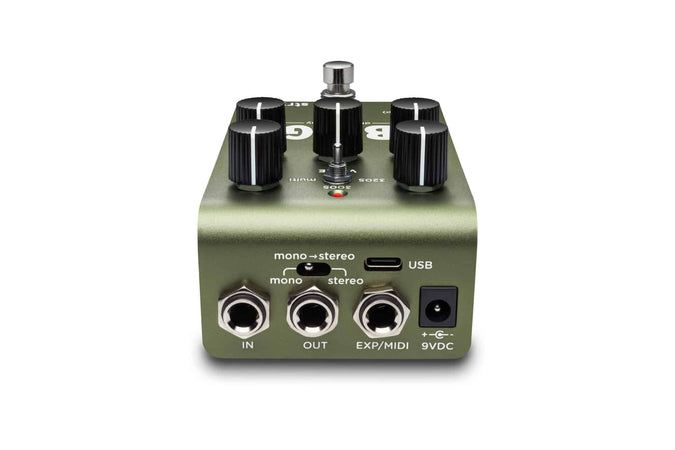

• Inputs/Outputs: TRS switchable mono/stereo I/O, high impedance, ultra low-noise Class A JFET input

• Expression/MIDI: EXP jack accepts TRS expression pedal, MiniSwitch, MultiSwitch Plus, or EXP-MIDI for:

  • 300 onboard presets

  • Real-time parameter control

• USB-C port: MIDI control, firmware updates, and full editing via Strymon Nixie software

• MIDI I/O: Full integration for preset recall and deep parameter access

Specifications

• Delay Time Range: Variable by mode (short to extended, chorus to spacious delay)

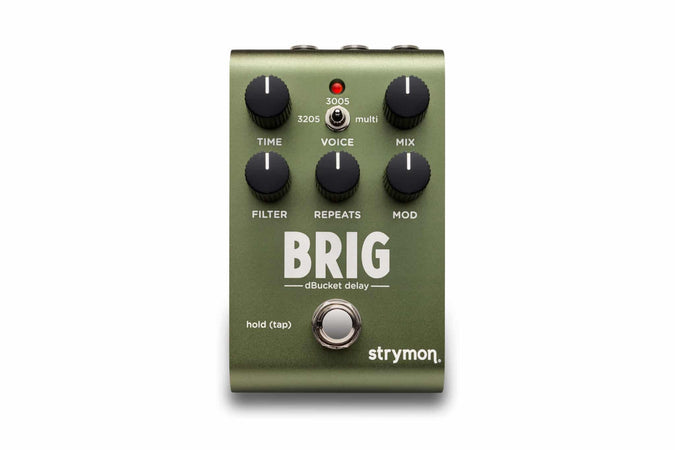

• Controls: Time, Repeats, Mix, Filter, Mode select, Tap tempo

• Bypass: True bypass or selectable buffered bypass

• Power: Requires 9V DC center-negative, 250mA minimum (PSU not included)

• Construction: Rugged compact housing, pedalboard-friendly footprint

• Dimensions: Approx. 4.5" x 2.75" (standard Strymon compact enclosure)
